| Manufacturer Part Number: | TPS71745DSET |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 4.5V 150mA 6-WSON (1.5x1.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS71745DSET Datasheet |
| Internal Part Number | 898-TPS71745DSET | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Base Metal 19/Jun/2014 Copper Wire Revision B 16/Dec/2014 TPS71701DCK Die Rev/DataSheet Update 8/Feb/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 4.5V | |
| Current - Output | 150mA | |
| Voltage - Dropout (Typical) | 0.17V @ 150mA | |
| Number of Regulators | 1 | |
| Voltage - Input | Up to 6.5V | |
| Current - Limit (Min) | 200mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-WFDFN | |

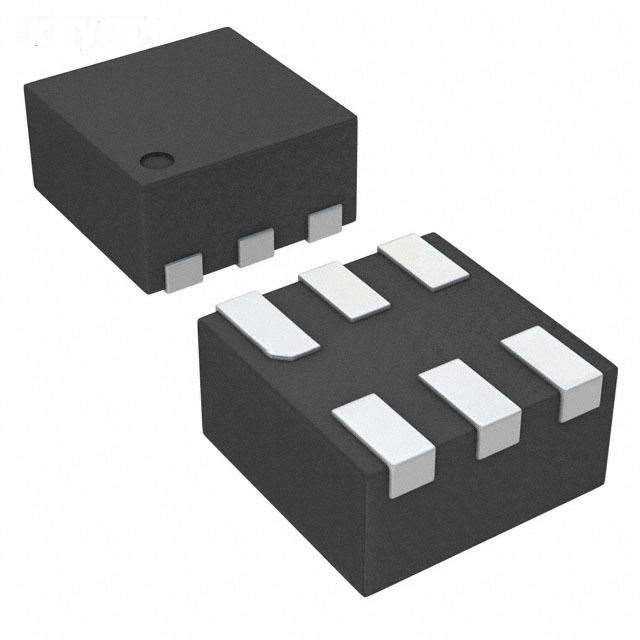

| Supplier Device Package | 6-WSON (1.5x1.5) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS71745DSET | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS71745DSET is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TPS71745DSET is new and unused, you can buy TPS71745DSET T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS71745DSET.
