| Manufacturer Part Number: | TXB0108DQSR |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Logic - Translators, Level Shifters |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Level Translator Bidirectional 1 Circuit 8 Channel 100Mbps 20-USON (4x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TXB0108DQSR Datasheet |
| Internal Part Number | 898-TXB0108DQSR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
| Manufacturer Product Page | TXB0108DQSR Specifications | |
| Online Catalog | TXB Series | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Translators, Level Shifters | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Translator Type | Voltage Level | |
| Channel Type | Bidirectional | |
| Number of Circuits | 1 | |
| Channels per Circuit | 8 | |
| Voltage - VCCA | 1.2 V ~ 3.6 V | |
| Voltage - VCCB | 1.65 V ~ 5.5 V | |
| Input Signal | - | |
| Output Signal | - | |
| Output Type | Tri-State, Non-Inverted | |
| Data Rate | 100Mbps | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | Auto-Direction Sensing | |
| Mounting Type | Surface Mount | |

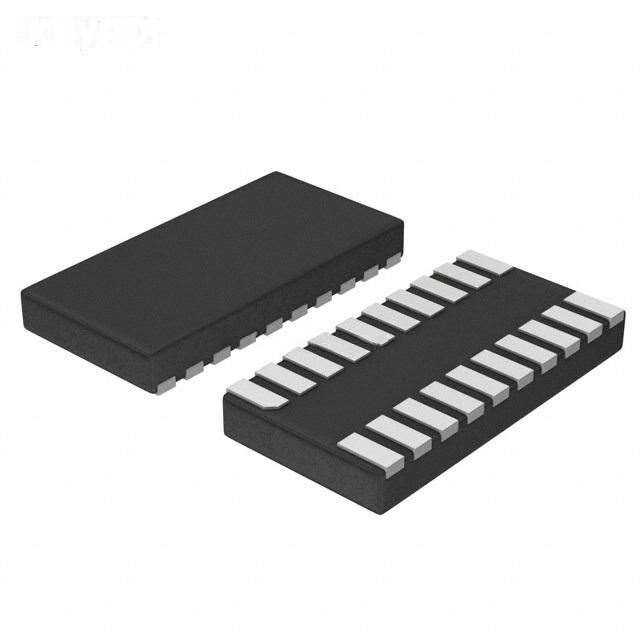

| Package / Case | 20-UFDFN | |
| Supplier Device Package | 20-USON (4x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TXB0108DQSR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TXB0108DQSR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TXB0108DQSR is new and unused, you can buy TXB0108DQSR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TXB0108DQSR.
