| Manufacturer Part Number: | TZX20C-TR |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 20V 500mW Through Hole DO-35 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TZX20C-TR Datasheet |
| Internal Part Number | 898-TZX20C-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 20V | |
| Tolerance | - | |
| Power - Max | 500mW | |
| Impedance (Max) (Zzt) | 60 Ohm | |
| Current - Reverse Leakage @ Vr | 1µA @ 15V | |
| Voltage - Forward (Vf) (Max) @ If | 1.5V @ 200mA | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Through Hole | |

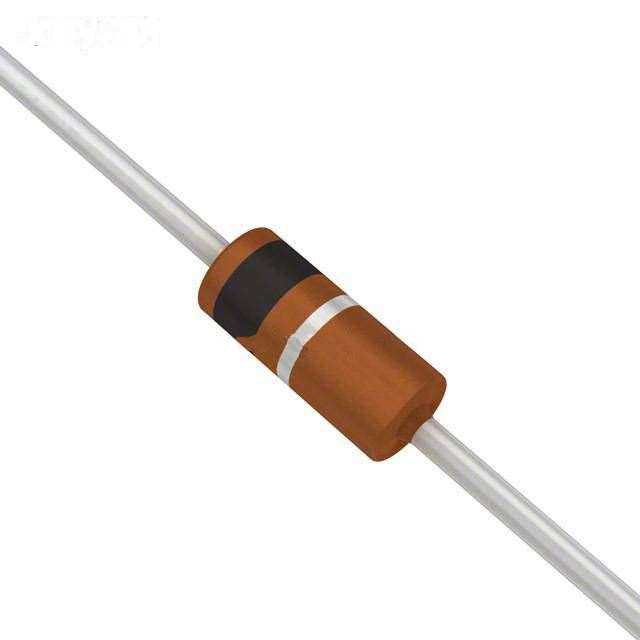

| Package / Case | DO-204AH, DO-35, Axial | |
| Supplier Device Package | DO-35 | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TZX20C-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TZX20C-TR is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of TZX20C-TR is new and unused, you can buy TZX20C-TR Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TZX20C-TR.
