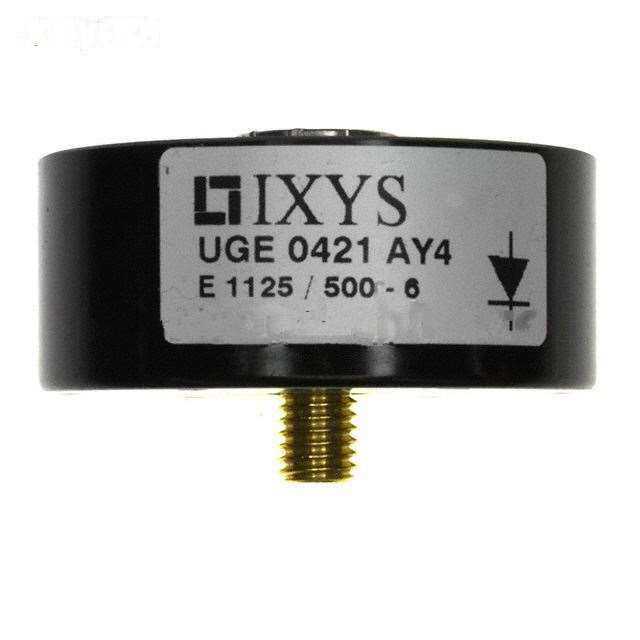

| Manufacturer Part Number: | UGE0421AY4 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE MODULE 3.2KV 22.9A UGE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UGE0421AY4 Datasheet |
| Internal Part Number | 898-UGE0421AY4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 3200V (3.2kV) | |
| Current - Average Rectified (Io) | 22.9A | |
| Voltage - Forward (Vf) (Max) @ If | 2.72V @ 55A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 2mA @ 3200V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | UGE | |
| Supplier Device Package | UGE | |
| Operating Temperature - Junction | * | |
| Standard Package | 6 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UGE0421AY4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UGE0421AY4 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of UGE0421AY4 is new and unused, you can buy UGE0421AY4 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UGE0421AY4.
