| Manufacturer Part Number: | UNR222300L |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Available Quantity: | 13592 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PREBIAS NPN 200MW MINI3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UNR222300L Datasheet |
| Internal Part Number | 898-UNR222300L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Transistor Type | NPN - Pre-Biased | |
| Current - Collector (Ic) (Max) | 500mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 10k | |
| Resistor - Emitter Base (R2) (Ohms) | 10k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 100mA, 10V | |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 5mA, 10mA | |
| Current - Collector Cutoff (Max) | 1µA | |
| Frequency - Transition | 200MHz | |
| Power - Max | 200mW | |
| Mounting Type | Surface Mount | |

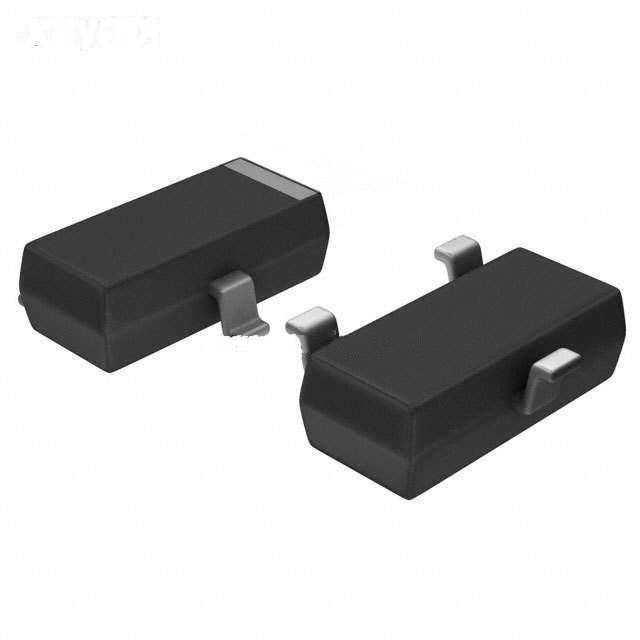

| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | Mini3-G1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UNR222300L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UNR222300L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of UNR222300L is new and unused, you can buy UNR222300L Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UNR222300L.
