Manufacturer Part Number: | AUIRF7665S2TR |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 100V 77A DIRECTFET2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AUIRF7665S2TR Datasheet |
Internal Part Number | 898-AUIRF7665S2TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
PCN Packaging | Package Drawing Update 19/Aug/2015 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | HEXFET® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 100V | |
Current - Continuous Drain (Id) @ 25°C | 4.1A (Ta), 14.4A (Tc) | |
Rds On (Max) @ Id, Vgs | 62 mOhm @ 8.9A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 25µA | |
Gate Charge (Qg) @ Vgs | 13nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 515pF @ 25V | |
Power - Max | 2.4W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

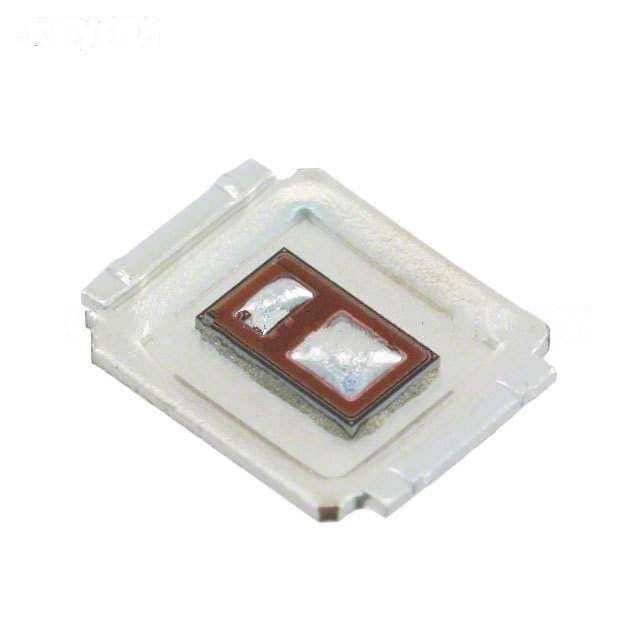

Package / Case | DirectFET™ Isometric SB | |
Supplier Device Package | DIRECTFET SB | |
Standard Package | 4,800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AUIRF7665S2TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AUIRF7665S2TR is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of AUIRF7665S2TR is new and unused, you can buy AUIRF7665S2TR Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AUIRF7665S2TR.
