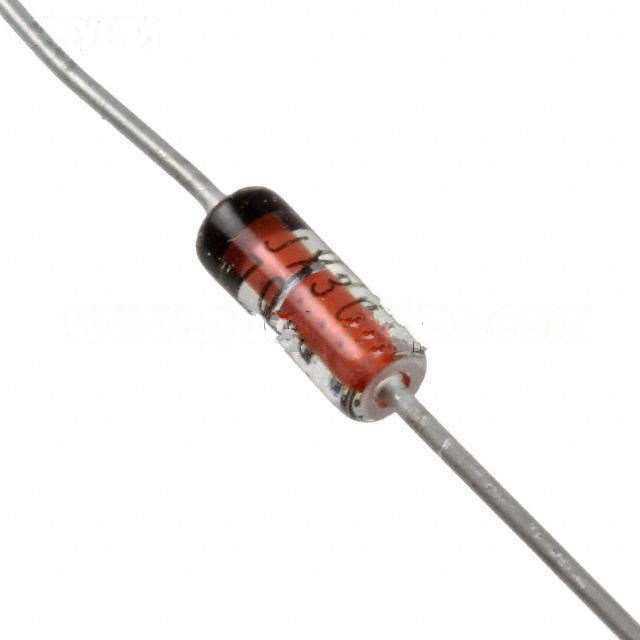

| Manufacturer Part Number: | JANTX1N3070-1 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 175V 100mA Through Hole DO-7 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N3070-1 Datasheet |
| Internal Part Number | 898-JANTX1N3070-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/169 | |
| Packaging | Bulk | |
| Part Status | Quote Required | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 175V | |
| Current - Average Rectified (Io) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 50ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 175V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AA, DO-7, Axial | |
| Supplier Device Package | DO-7 | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N3070-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N3070-1 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N3070-1 is new and unused, you can buy JANTX1N3070-1 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N3070-1.
