| Manufacturer Part Number: | MBR745 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9082 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 45V 7.5A TO220AC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MBR745 Datasheet |
| Internal Part Number | 898-MBR745 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Transfer Assembly/Test Site 24/Jan/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) | 7.5A | |
| Voltage - Forward (Vf) (Max) @ If | 840mV @ 15A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100µA @ 45V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |

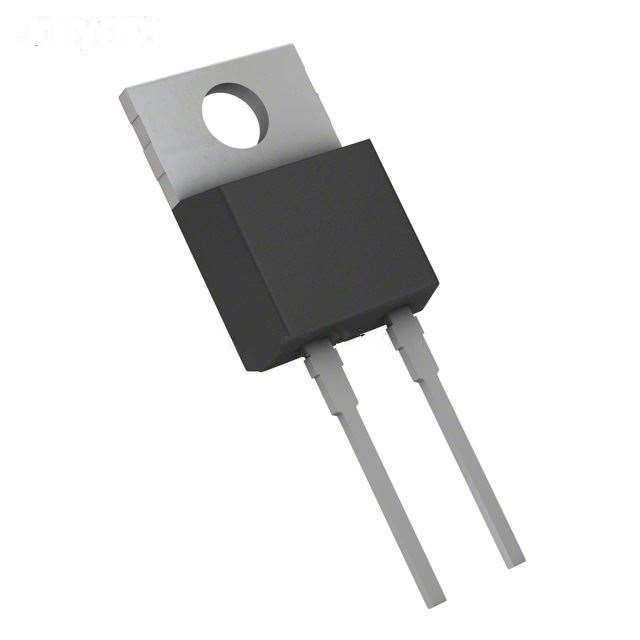

| Package / Case | TO-220-2 | |
| Supplier Device Package | TO-220AC | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MBR745 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MBR745 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of MBR745 is new and unused, you can buy MBR745 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MBR745.
