| Manufacturer Part Number: | MCH3486-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 60V 2A MCPH3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCH3486-TL-H Datasheet |
| Internal Part Number | 898-MCH3486-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Update 02/Dec/2014 | |
| PCN Assembly/Origin | Additional Wafer Fab Site 11/Aug/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Quote Required | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 4V Drive | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | |
| Rds On (Max) @ Id, Vgs | 137 mOhm @ 1A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 7nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 310pF @ 20V | |
| Power - Max | 1W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

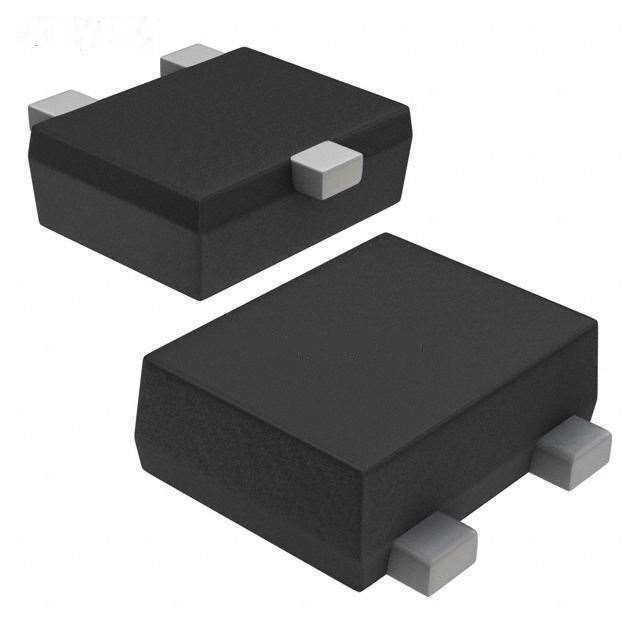

| Package / Case | 3-SMD, Flat Leads | |
| Supplier Device Package | SC-70FL/MCPH3 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCH3486-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCH3486-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MCH3486-TL-H is new and unused, you can buy MCH3486-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCH3486-TL-H.
